MDX

Export as React Markdown

This option lets you embed cells or an entire notebook to MDX-based websites (personal blog or a React App in general).

Where you can use it​

We personally use this format to build our docs pages including this one you are looking at.

Portability​

The same as Static HTML and Dynamic HTML, in addition MDX exporter will copy

  • ./attachments folder

Interactive content​

It works in the same ways as in Dynamic HTML

Folder structure​

Once exported it produces the following structure

- yourNotebook.mdx
- attachments/
	- yourNotebook.wln
	- ...uid.txt
	- ...uid.txt
	- picture1.png
	- ...

where ...uid.txt are figures, sound, or video data stored as JSON expressions. This we do in order to make the output .mdx files still readable and load interactive content on demand.

React library​

To render cells we use wljs-notebook-react library, which provides the following component for MDX files

  • WLJSStore (only once per page): Loads heavy content like 3D graph data, hash maps for interactive widgets, etc.
  • WLJSEditor: Renders an input/output cell
  • WLJSHTML: Renders raw HTML content

Example how the exported notebooks can look like

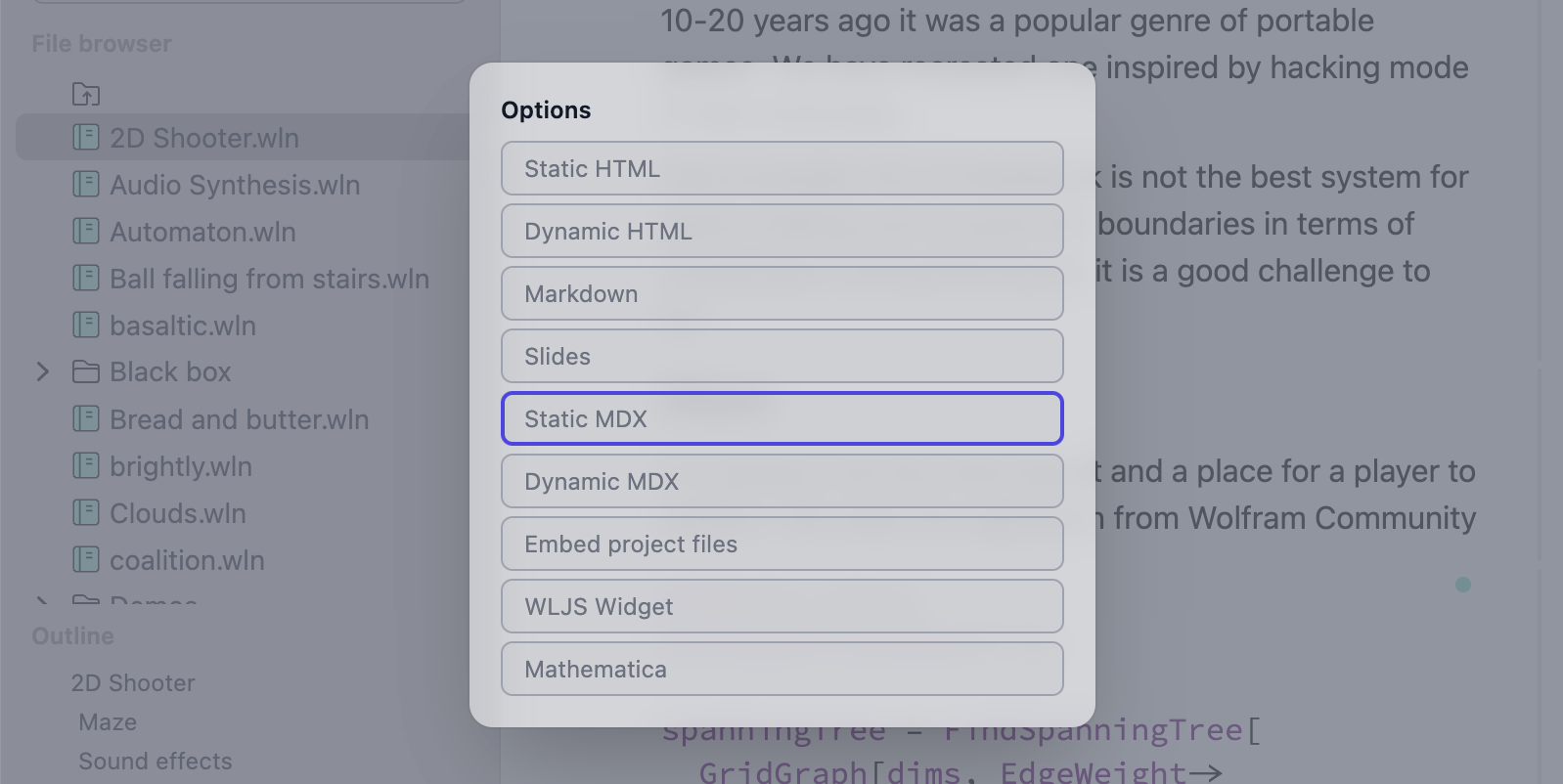

### How to convert a notebook to MDX
Use `Share` menu button in *WLJS Notebook application*.

Now let's have a look at some example

import { WLJSHTML, WLJSEditor, WLJSStore } from "wljs-notebook-react";

<WLJSStore kernel={'./attachments/kernel-1132786671423612299.txt'} json={'./attachments/8f0674d8-8a5d-40d7-b8a5-bf7114e97175.txt'} notebook={'./attachments/notebook-8f0.wln'}/>


## ManipulatePlot
An example of built-in function for interactive plotting

<WLJSEditor display={"codemirror"} nid={"8f0674d8-8a5d-40d7-b8a5-bf7114e97175"} id={"6848862b-32a7-4077-8d20-c9255ce82a17"} type={"Input"} opts={{}} >{`.......code....`}</WLJSEditor>

<WLJSEditor display={"codemirror"} nid={"8f0674d8-8a5d-40d7-b8a5-bf7114e97175"} id={"a4397cb9-344e-4b44-a119-b565feef9a15"} type={"Output"} opts={{}} >{`....code...goes....`}</WLJSEditor>

You would also need to preprocess these files using remark plugin. Please see the documentation to wljs-notebook-react library

NextJS Example​

Here is an example repository

It features a working SSR-based website built using a minimal setup

"dependencies": {
    "@mdx-js/loader": "^3.1.0",
    "@mdx-js/react": "^3.1.0",
    "@next/mdx": "^15.3.1",
    "fs-extra": "^11.3.0",
    "next": "^15.3.1",
    "remark-mdx": "^3.1.0",
    "wljs-notebook-react": "^1.0.7"
}
