Quick 3 band-stop filter

· 2 min read

A EQ-like band-stop filter mini app for processing any XY numerical data tables with interactive preview and real-time data manipulation

Features​

  • Block or amplify bands in real or Fourier space
  • See the changes immediately ✨
  • Columns selection, importers for csv, tsv, dat, xls data
  • Units agnostic

Download App v.01

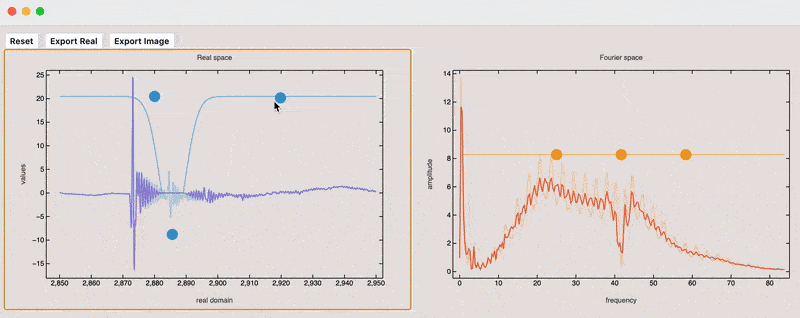

In action​

Workflow​

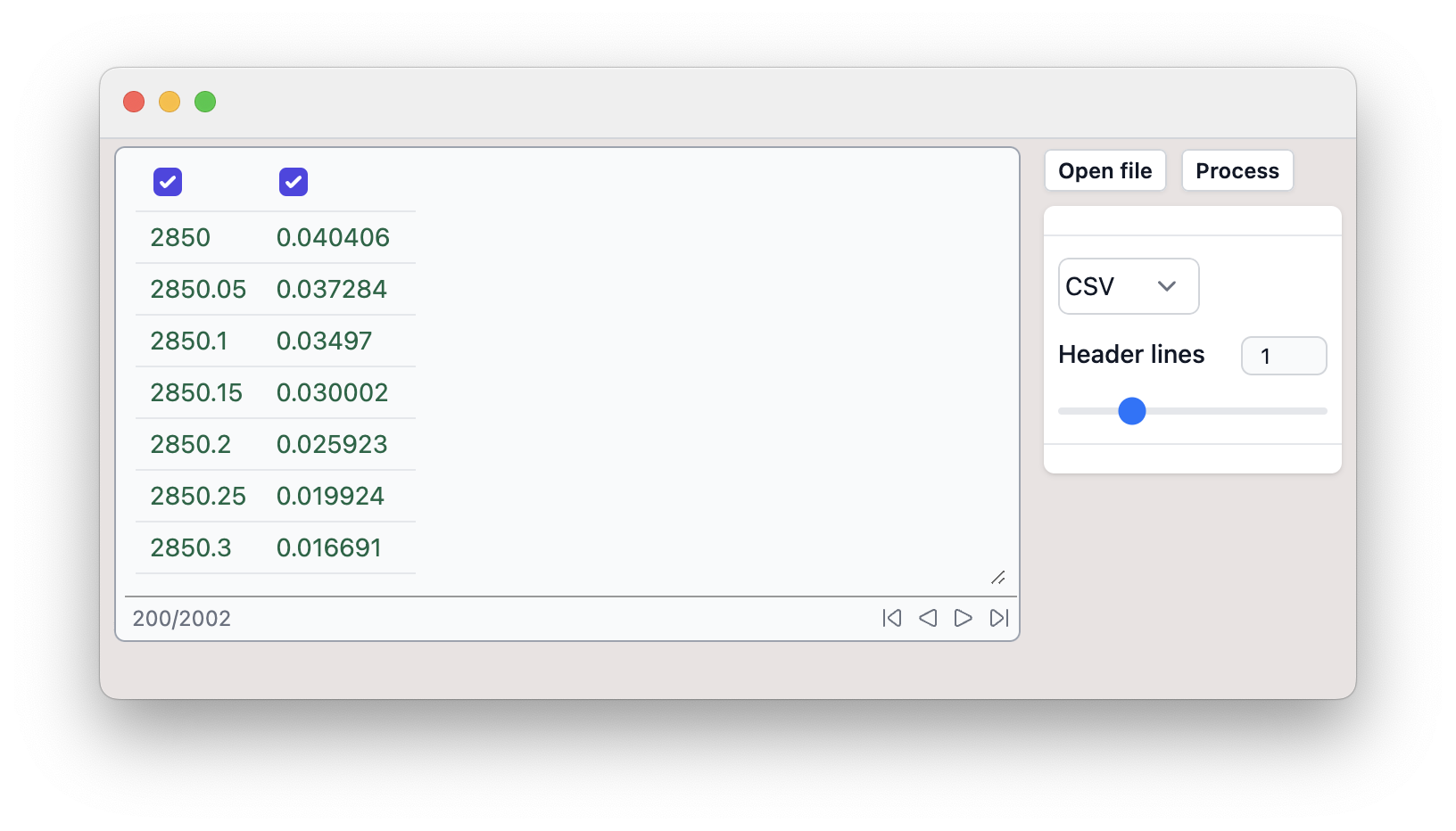

  1. Import and select 2 columns (assumed to be XY)

2. Apply band-stoping

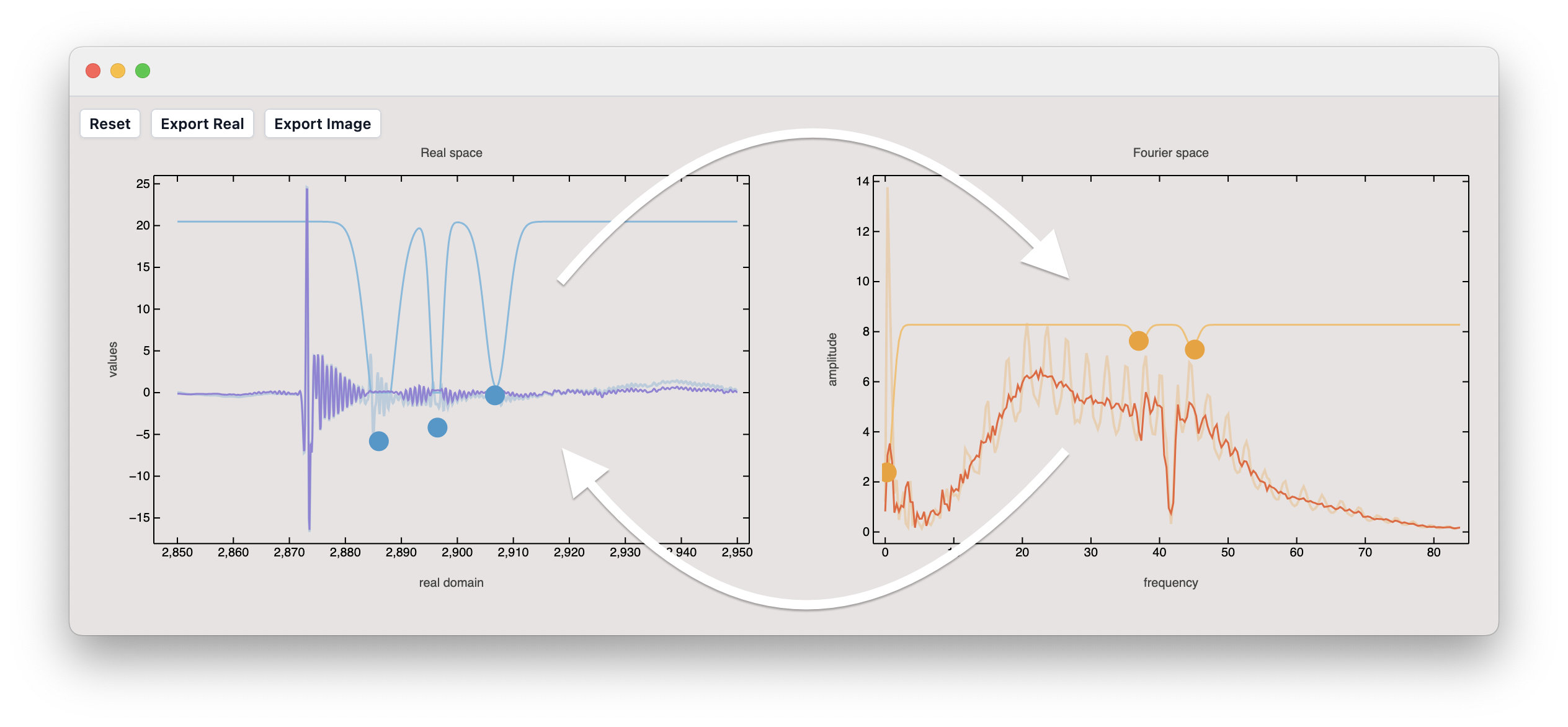

It is designed in the way that your data is filtered in real space first (left), then converted to Fourier space and filtered there (right), and after that converted back to real space with the same sampling used in the original data.

A user can export from both stages depending on the application.
