Overview

Visualize your Ideas

To start - import the context to anyhting expect Global:

Needs["AnimationFramework`" -> "af`"] // Quiet

AF is a build-in library of WLJS Notebook for creating complex event-driven 2D animations in a functional style. You create all necessary primitives by yourself combining well-known expressions of Wolfram Language. AF only provides a set of helper tools to organize your workflow, its fundament is based on existing features WLJS can offer.

What is included?

Automatic object-like management, layers
Animated transitions (linear, cubic, custom function)
Workers, loops and helper structures

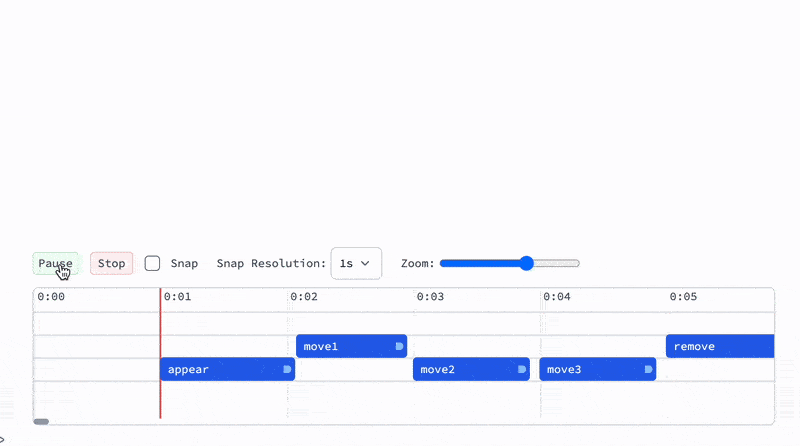

Timeline GUI
Recorder (only for desktop application)

Basic Example

Let's describe what should happen each frame:

make a scene

scene = af`Scene[];
scene // Framed

Use projection feature of the input cell to render your scene in a separate window

describe logic

animation = AsyncFunction[scene, Module[{d},
  d = af`AddTo[scene, {
    Opacity[#o],
    Translate[
      Rotate[
        Rectangle[{-0.5,-0.1}, {0.5,0.1}]
      , #r]
    , #c]
  }, {
    "o" -> 0.,
    "r" -> 0.,
    "c" -> {0,0}
  }];

  af`Animate[scene, d, {"o" -> 1.0,"r" -> 3.14}, "Ease", 1.0] // Await;

  PauseAsync[0.4] // Await;

  af`Animate[scene, d, {"c"->{0.5,0.5}}, "Ease", 1.0] // Await;
  af`Animate[scene, d, {"c"->{-0.5,0.5}, "r"->4.2}, "Ease", 1.0] // Await;
  af`Animate[scene, d, {"c"->{0.5,-0.5}}, "Ease", 1.0] // Await;

  af`Animate[scene, d, {"c"->{0.,0.}, "o"->0., "r"->0}, "Ease", 1.0] // Await;

  af`Remove[d];

  "The End"
]];

Then[animation[scene], Speak];

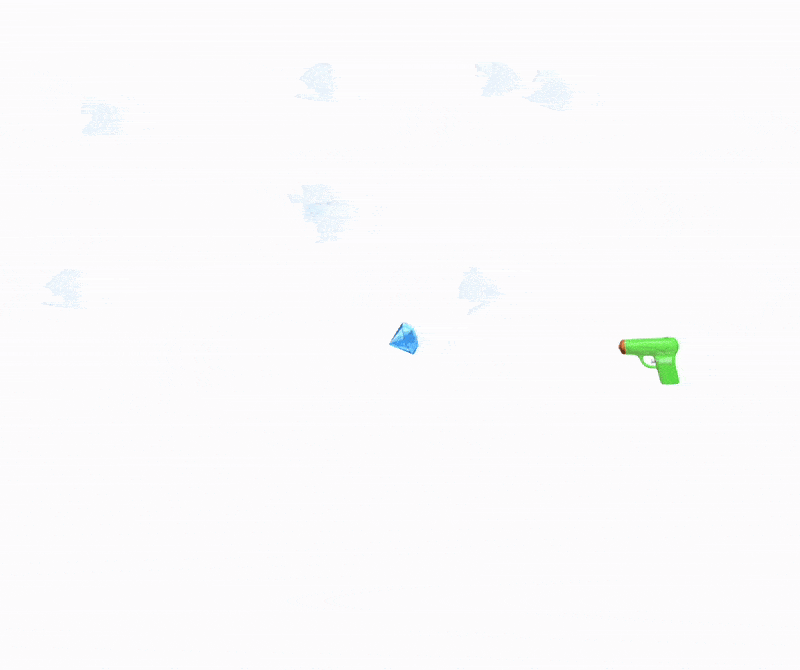

Emoji pistol shooting crystals

Here is fun one using workers:

mainScene = af`Scene[ImageSize->2 {500,400}];
kill = InputButton["Stop"]

animateShooting[mainScene, kill];

shoot = AsyncFunction[{scene, layer, d, crystal, p, target},
  Module[{s, pos},
    pos = p;
    With[
      {angle = Sign[target[[2]] - p[[2]]] ArcCos[{-1, 0}.Normalize[target - p]]},
      af`Animate[scene, d, "r" -> angle, "Linear", 0.2] // Await;

      s = af`AddTo[layer, {
        Pink, Opacity[#o], Line[{#origin, #target}]
      }, {
        "origin" -> pos,
        "target" -> pos,
        "o" -> 0.0
      }];

      af`Animate[scene, s, {
        "target" -> target,
        "o" -> 1.0
      }, "Linear", 0.2] // Await;

      af`Update[scene, s, {"origin" -> target}];

      {
        af`Animate[scene, s, {
          "target" -> {1.5, RandomReal[{-1, 1}]},
          "o" -> 0.0
        }, "Linear", 0.3],
        af`Animate[scene, crystal, {
          "o" -> 0.1,
          "s" -> 1.5
        }, "QuadOut", 0.15]
      } // Await;

      af`Remove[s];
    ]
  ]
];

addCrystal = AsyncFunction[scene,
  Module[{c},
    c = With[{pos = {RandomReal[{-1.0, 0.4}], -2.0}},
      {
        af`AddTo[scene, {
          Opacity[#o],
          Translate[
            Scale[
              Rotate[
                {
                  Directive[FontSize -> 20],
                  Text["💎", {0, 0}, {0, 0}]
                },
                RandomReal[{0, 6.}]
              ],
              #s
            ],
            #p
          ]
        }, {
          "p" -> pos,
          "s" -> 1.0,
          "o" -> 1.0
        }],
        pos
      }
    ];

    c[[2]] = {c[[2]][[1]], RandomReal[{-0.2, 0.9}]};

    af`Animate[scene, c[[1]], "p" -> c[[2]], "CubicInOut", 1.0] // Await;

    c
  ]
];

animateShooting = AsyncFunction[{scene, kill},
  Module[{d, worker, bg},
    bg = af`Layer[scene, SVGGroup[{#children}]];

    d = af`AddTo[scene, {
      Translate[
        Rotate[
          {
            Directive[FontSize -> 34],
            Text["🔫", {0, 0}, {0, 1}]
          },
          #r, {0.05, 0.0}
        ],
        {0.6568339538574219, 0.06299530029296868}
      ]
    }, {
      "r" -> 0.
    }];

    worker = af`Worker[scene, AsyncFunction[Null,
      Module[{crystal},
        crystal = addCrystal[scene] // Await;
        shoot[
          scene,
          bg,
          d,
          crystal[[1]],
          {0.6568339538574219, 0.06299530029296868},
          crystal[[2]]
        ] // Await;
      ]
    ]];

    kill // Await;

    af`Finish[worker] // Await;
    af`Remove[worker];
    af`Remove[scene];
  ]
];

Not all graphics primitives or their properties are animatable or appendable. Please check if the primitive support Offload in the header of the reference page of a given symbol.

Real World Examples

There are not that many of them. This framework was originally created for the sake of this YouTube Short.

Limitations

Not possible to export the animation to HTML or MDX.
